Description

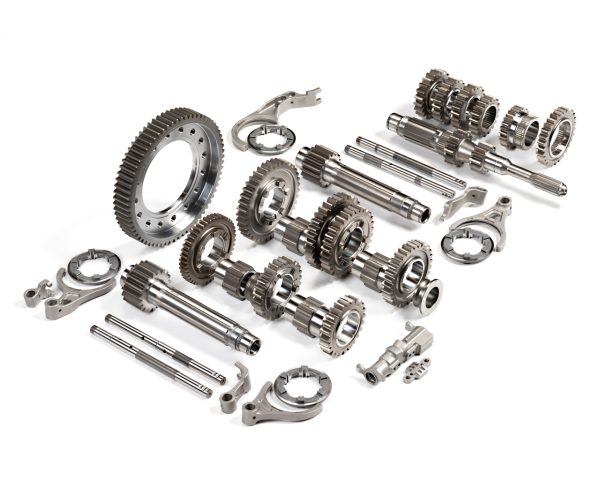

The Toyota Yaris gearkit is a complete dog engaged straight-cut gearkit including new selector shaft/fork design. Designed to fit the OEM gearbox casings, no adjustments required. Gearset can handle up to 600Nm of torque and can be used in several categories of motorsport. The new main selector system results in effective and precisely shifting with respect to the OEM design.
600Nm maximum input torque
Straight cut gears
Dog engagement
New main selector system
Gear Ratio Chart
Layshaft Ratios
Gear Ratios
Final Drive Ratios
1st
2nd
3rd
4th
5th
6th
1st / 4th
5th / 6th
3.000
2.200
1.684
1.348
1.217
1.091
3.941
3.526
