Description

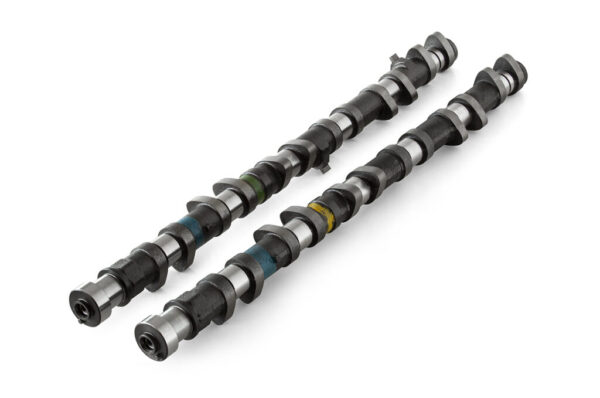

Kelford 248/248 Degrees Camshaft Set Toyota 2JZ-GTE
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 2JZ VVTi | V202-A | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 8.95mm | Exhaust: | 8.95mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 8.70mm | Exhaust: | 8.70mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 248 | Exhaust: | 248 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 210 | Exhaust: | 210 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 41 BBDC | |||
| IVC: | EVC: | 11 BTDC | |||||
| Suggested Centre Lines: | Intake: | vari | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.26mm | |||
