Description

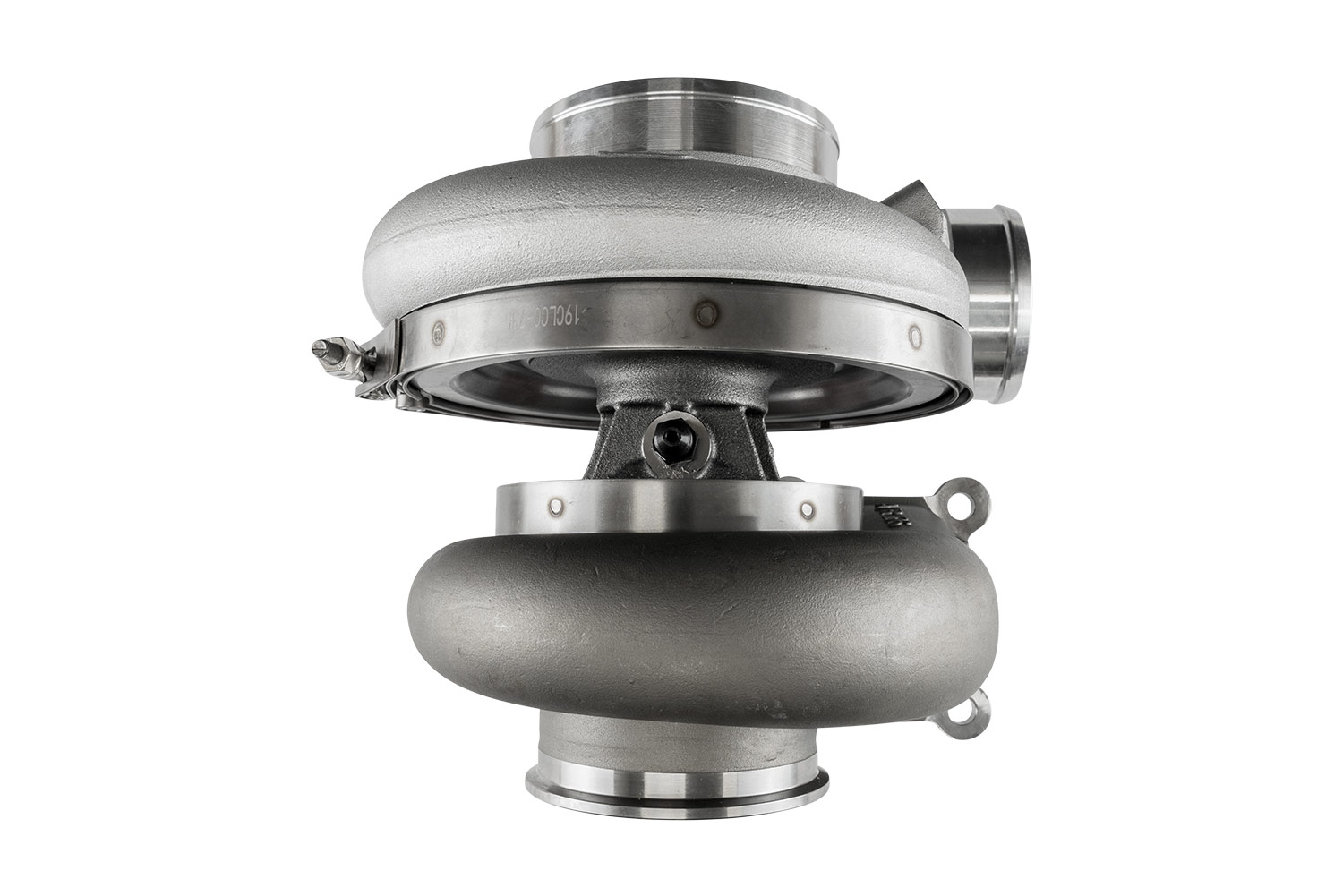

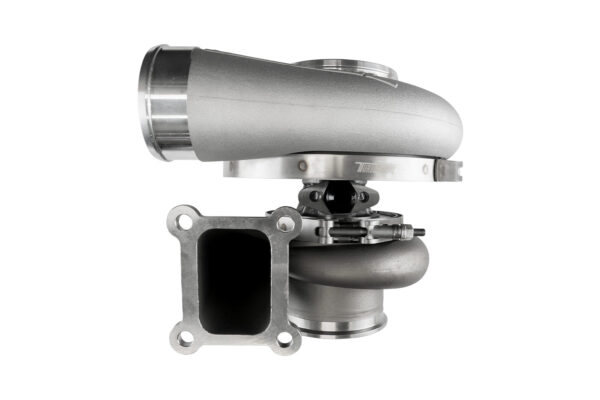

Smaller, Lighter, and Faster—The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport and performance enthusiasts.
Every Turbosmart turbocharger comes standard with everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.
The TS-1 series are oil-cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and a main shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained.
The TS-1 turbocharger series has taken a ‘whole of engine’ approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines – while being smaller, lighter and faster in response than other solutions on the market.
Available InTS-1 oil cooled turbochargersTS-2 oil and water cooled turbochargersV-Band, various T3 Flange and T4 Flange optionsReverse rotation (Selected Sizes)Various A/R optionsInternal and external wastegated options available
FeaturesUnparalleled transient responseAggressive aerodynamics with 7+7 splitter wheelsLightweight 310s stainless steel investment cast turbine housingsLightweight, Aluminium compressor coversCFD-driven designed housings for optimal A/R’s and flowT14 Inconel turbine wheel for extreme EGTsVSR speed balancedProprietary dual ceramic bearing systemIntegrated Iron backplate on center housing
SpecificationsCompressor Inlet: 4″ / 101.6mmCompressor Inducer: 76mmTurbine Inlet: T4Turbine Exducer: 75mmTurbine AR: 0.96Turbine Outlet: V-Band (3.50″)Weight: 9.63kg / 20.23lbsHorsepower Rating: 1200-1350HP
