Description

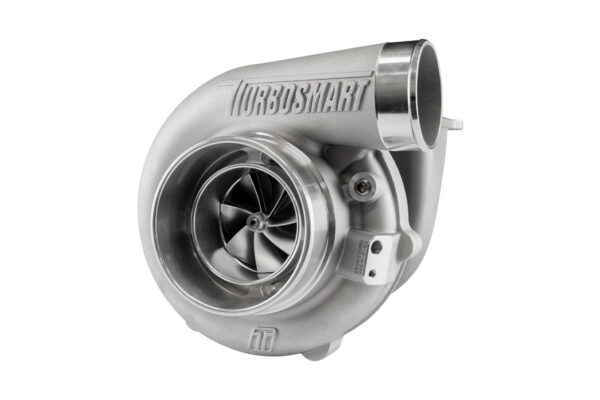

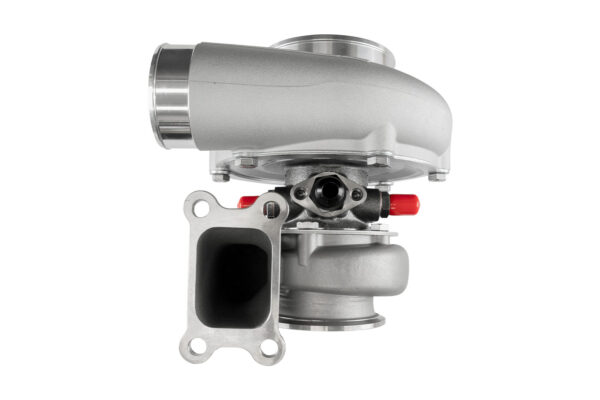

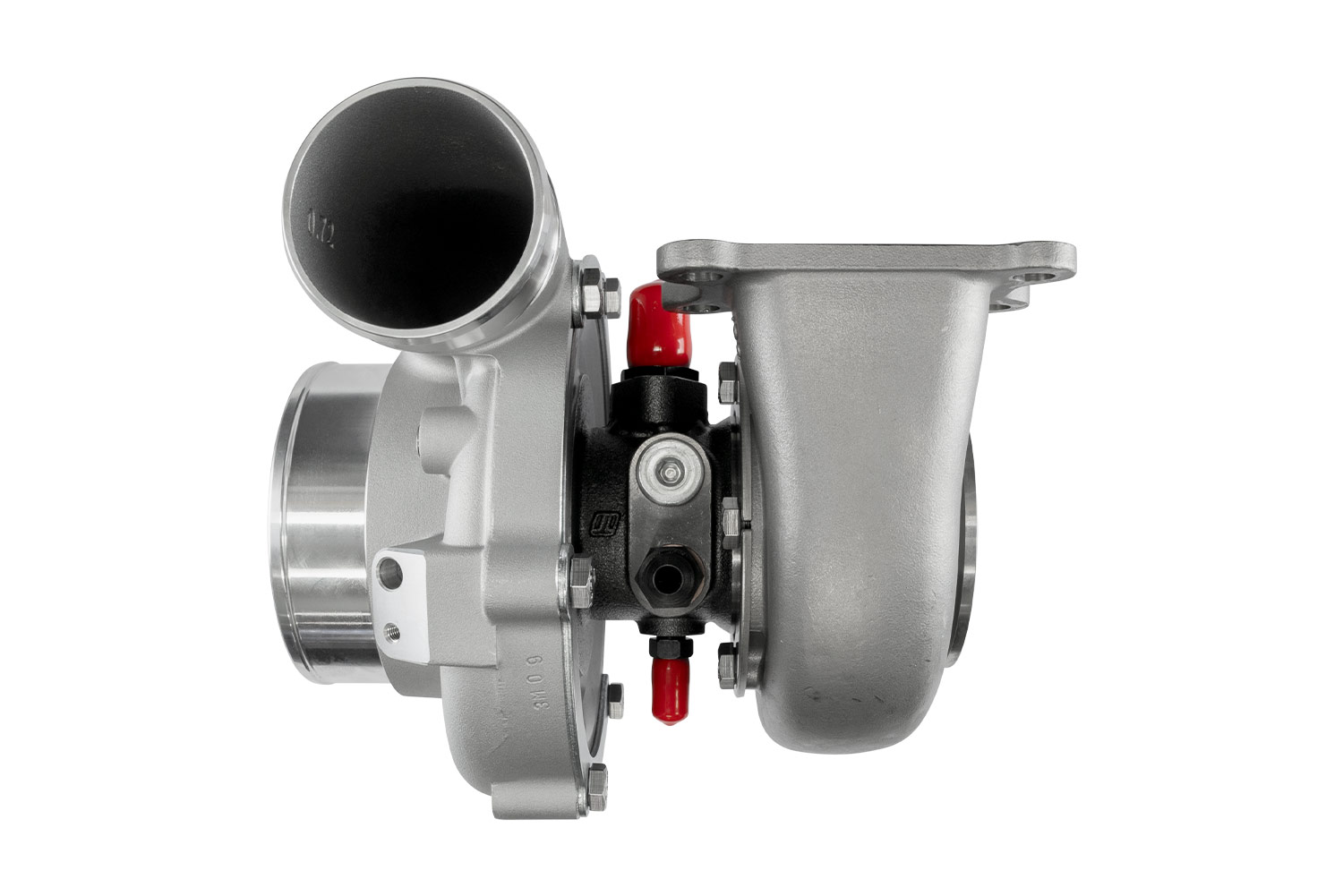

Smaller, Lighter and Faster—The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.
Every Turbosmart turbocharger comes standard with everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.
The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a central shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high-performance levels at lower shaft speeds. It is mated with a unique turbine wheel to provide power at high loads and maintain flow.
The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines – While being smaller, lighter and faster in response than other solutions on the market.
Available InTS-1 oil-cooled turbochargersTS-2 oil and water-cooled turbochargersV-Band, various T3 Flange and T4 Flange optionsReverse rotation (Selected Sizes)Various A/R optionsInternal and external wastegate options are available
FeaturesUnparalleled transient responseAggressive aerodynamics with 7+7 splitter wheelsLightweight 310s stainless steel investment cast turbine housingsLightweight, Aluminium compressor coversCFD-driven designed housings for optimal A/Rs and flowT14 Inconel turbine wheel for extreme EGTsVSR speed balancedProprietary dual ceramic bearing systemIntegrated Iron backplate on center housing
SpecificationsCompressor Inlet: 4″ / 101.6mmCompressor Inducer: 64mmTurbine Inlet: T3 FlangeTurbine Exducer: 66mmTurbine AR: 1.10Turbine Outlet: V-Band (3.00″)Weight: 6.06kg / 13.3lbsHorsepower Rating: 750-930HP
