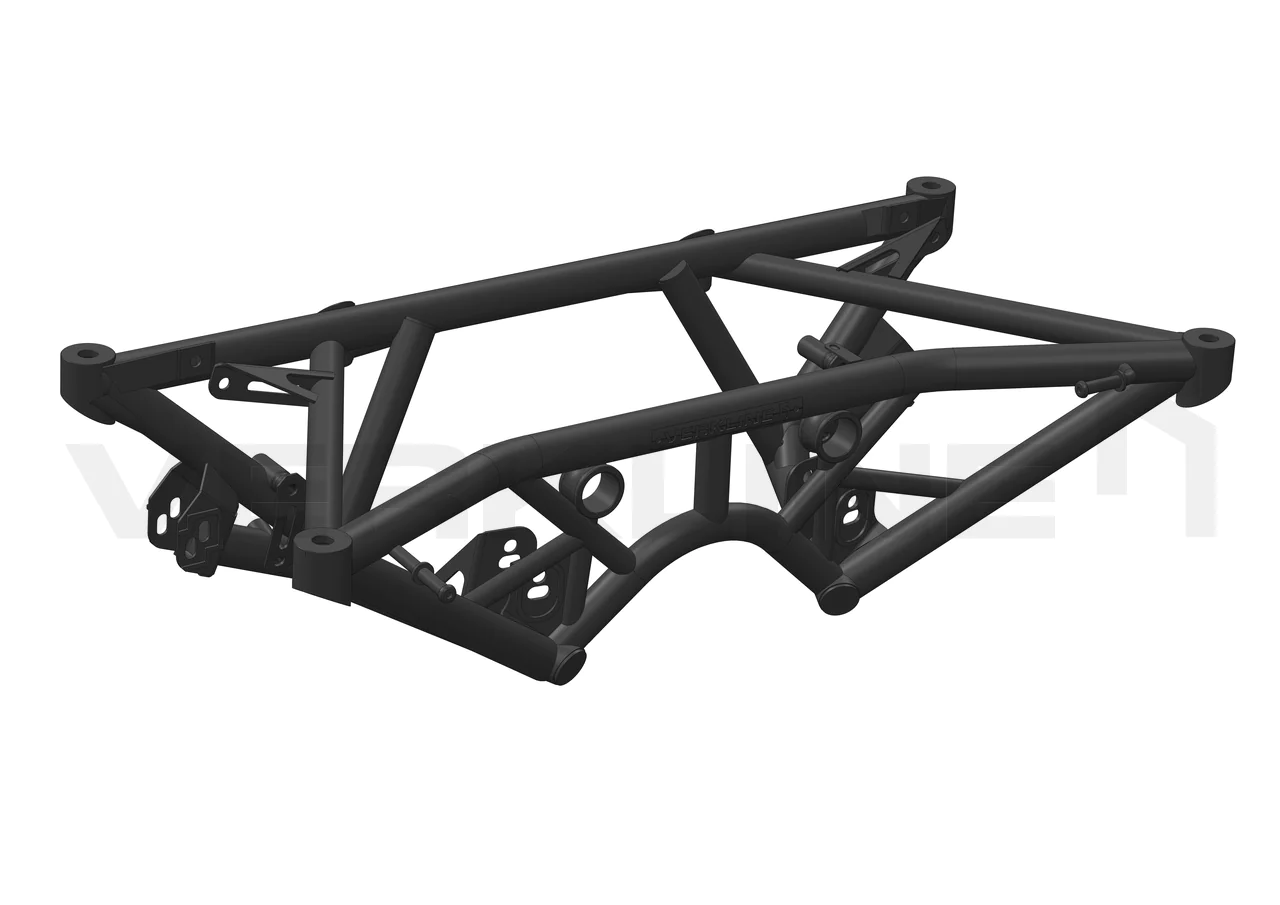

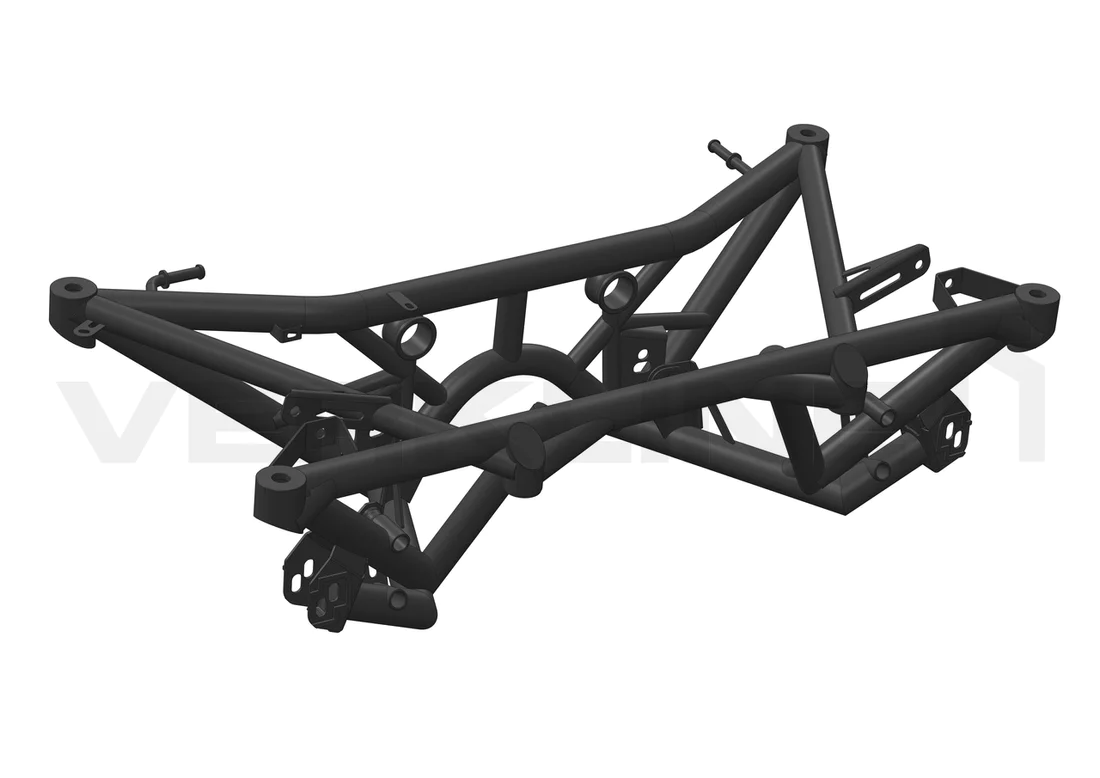

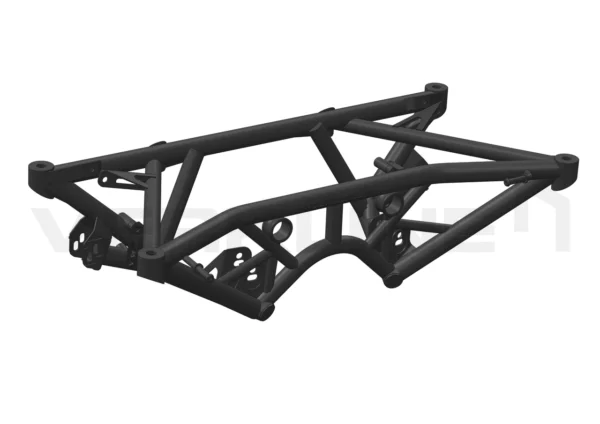

Toyota GR Yaris Verkline Tubular Subframe
The Toyota GR Yaris is already a formidable machine—lightweight, AWD, and turbocharged, with rally-inspired DNA. But for enthusiasts chasing sharper dynamics and motorsport-grade performance, a full Verkline tubular subframe upgrade offers a serious leap forward. The front lightweight tubular subframe is designed specifically for the Toyota GR Yaris, enhancing the vehicle’s performance and adaptability.
Introduction to the Verkline Tubular Subframe
The Verkline Tubular Subframe is a high-performance suspension component designed specifically for the Toyota GR Yaris. This innovative product is engineered to improve handling performance, increase chassis rigidity, and provide significant weight savings. As a key component of the Verkline rear lightweight tubular subframe, it integrates seamlessly with the Toyota GR Yaris’s suspension system, enhancing the car’s overall dynamics. By replacing the heavier OEM subframe with this lightweight tubular subframe, drivers can experience a more responsive and agile ride, making it an essential upgrade for any performance enthusiast.
Precision Engineering for Performance Gains
Verkline’s front and rear lightweight tubular subframes are designed to significantly reduce weight, increase chassis rigidity, and improve suspension geometry. These aren’t just minor tweaks—they’re complete replacements for the heavy, stamped OEM components. Constructed from high-strength, TIG-welded tubular steel, they deliver instant improvements in feedback, responsiveness, and overall driving feel. The comprehensive suspension kit includes a front adjustable tie rod, which plays a crucial role in transforming the vehicle’s handling and responsiveness.
Significant Weight Savings with Rear Lightweight Tubular Subframe
One of the most noticeable benefits of the Verkline subframes is the reduction in weight. The front subframe alone drops a substantial amount compared to the factory unit, improving front-end agility and steering response. Additionally, it increases chassis rigidity, contributing to weight savings and eliminating the need for additional lower braces. The rear subframe further trims weight, helping rebalance the car and reduce unsprung mass.
Enhanced Handling and Adjustability
Beyond just being lighter, the Verkline subframes open up new possibilities for precision alignment and suspension tuning. Designed to be compatible with spherical bearings or uniball mounts, they allow for tighter control and greater confidence at the limit. Additionally, the rear insert kit plays a crucial role in enhancing performance and handling, though it may lead to increased noise, vibration, and harshness (NVH) within the cabin.
Key Features of the Verkline Tubular Subframe
The Verkline Tubular Subframe boasts several key features that set it apart from other suspension components on the market. These include:
- Improved Suspension Kinematics: Additional and modified suspension mounting points enhance the vehicle’s suspension geometry, providing better handling and stability.
- Adjustable Billet Aluminium Wishbone: This feature allows for precise tuning and customization, catering to individual driving preferences.
- Aluminium Rear Differential Carrier: Adds strength and durability to the rear differential, ensuring it can handle high-performance demands.
- Rear Adjustable Upper Arm and Rear Adjustable Trailing Arm: These components allow for fine-tuned suspension adjustments, optimizing handling and performance.
- One Mounting Subframe Position: This design eliminates subframe shifting under the car, maintaining consistent performance.
- Powder Coated Finish: Provides a durable, corrosion-resistant coating, ensuring the subframe withstands harsh conditions and remains in top condition.
Installation and Integration
The Verkline Tubular Subframe is designed for straightforward installation, with a comprehensive installation kit included. It is compatible with standard OEM pickup points, though some rework may be required for aftermarket exhaust systems. For GR Corolla models, custom mounts may be necessary for the exhaust pipe.
While the installation process might introduce additional NVH (noise, vibration, and harshness) into the cabin, proper installation and adjustment can minimize these effects. The subframe requires the use of Verkline wishbones (WAS-621 and WAS-622) for modified mounting points. Additionally, mounting bolts and adjustable tie rod ends are included, ensuring seamless integration with your existing suspension system.
With its improved handling performance, increased chassis rigidity, and weight savings, the Verkline Tubular Subframe is the perfect upgrade for any Toyota GR Yaris owner looking to elevate their driving experience to the next level.
Product functionalities:
Additional suspension mounting points for improved suspension kinematics for lowered cars with racing purpose
Bump steer adjustability
One mounting subframe position eliminates subframe shifting under the car. No need for subframe locking kit / deadset collar kit (weight savings)
Increases chassis rigidity for improved handling performance. No need for additional lower bar/member brace (weight savings)
Better access to car underbody
Features:
Lighter than OEM by 6 kg.
Compatible with both OEM and Verkline wishbones
Made from T45 super strong piping.
Delivered painted (powder coated) black or on special order (+50 euro) any RAL colour
What is included:
One rear subframe powder coated black with lower brace
Set of adjustment shims for kinematics adjustment
One black polyurethane mount for the rear differential
Set of mounting bolts.
Printed install instructions
Used in:
– Toyota Yaris GR 2020+
Note: Installation of this rear insert kit will introduce some additional some NVH (noise, vibration, and harshness) transfer into the cabin.
